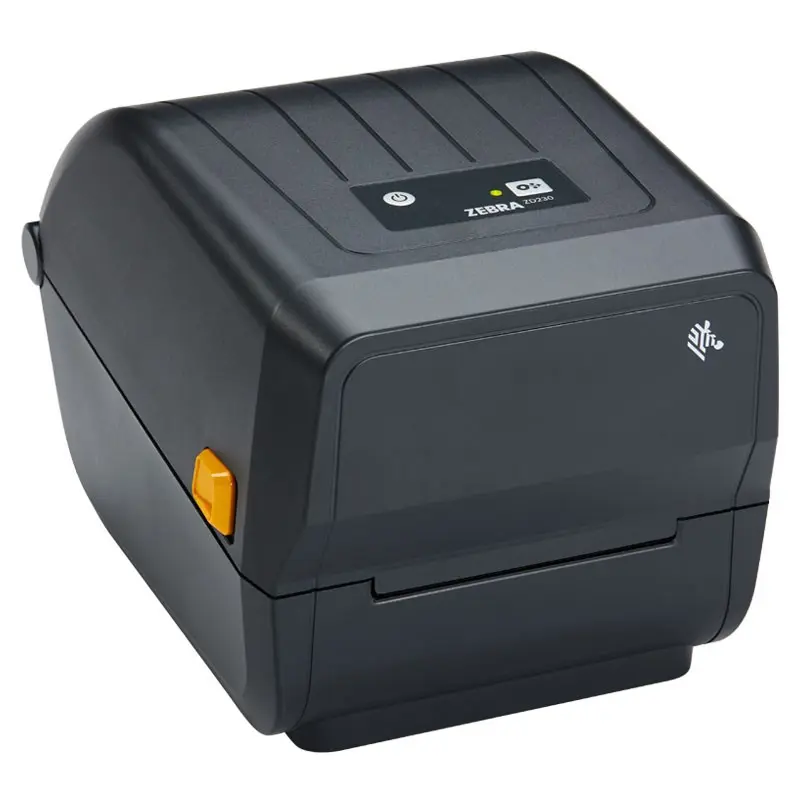

Zebra ZD230t 203DPI - 4" Thermal Transfer Desktop Label Printer

What printing technology does the Zebra ZD230T use?

The ZD230T is a Thermal Transfer printer, meaning it uses a ribbon to produce durable, long-lasting labels. It can also print in Direct Thermal mode when used with compatible heat-sensitive labels.

What print resolutions are available?

The ZD230T is available in a 203 DPI resolution, making it ideal for shipping labels, barcode labels and general-purpose identification labels.

What is the maximum print width?

The maximum print width is 104 mm (4.09").

How fast can the printer print?

The ZD230T prints at speeds up to 152 mm/sec (6 ips).

What label sizes can the ZD230T handle?

The printer supports media widths from 25.4 mm up to 112 mm and label lengths up to 991 mm, making it suitable for product labels, asset tags, warehouse labels and shipping labels.

What ribbon sizes are supported?

The ZD230T supports thermal transfer ribbons up to 300 m in length, helping reduce downtime for high-volume printing applications.

What connectivity options are available?

Standard models include USB connectivity, with optional configurations available for Ethernet networking.

How much memory does the printer have?

The ZD230T includes 128 MB Flash memory and 128 MB SDRAM, allowing it to efficiently handle everyday label printing applications.

What media types can the printer use?

The printer supports die-cut labels, continuous labels, tag stock, fan-fold media and black mark labels.

Does the printer support cutters and peelers?

Yes. Factory-installed cutter and peeler options are available on selected models.

What is the maximum roll size?

The ZD230T supports media rolls up to 127 mm (5") in outside diameter.

Is the ZD230T compatible with older Zebra printer languages?

Yes. The printer supports ZPL II and EPL emulation, making migration from older Zebra printers straightforward.
