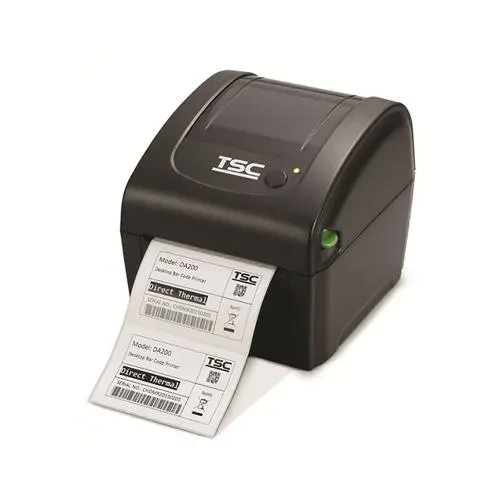

TSC DA320 300DPI - 4" Direct Thermal Desktop Label Printer

What printing technology does the TSC DA320 use?

The DA320 is a Direct Thermal printer, meaning it prints directly onto heat-sensitive labels without requiring ink, toner or ribbons.

What print resolutions are available?

The DA320 features a 300 DPI print resolution, making it ideal for small labels, fine text, detailed graphics and high-density barcodes.

What is the maximum print width?

The maximum print width is 105.7 mm (4.16").

How fast can the printer print?

The DA320 prints at speeds of up to 102 mm/sec (4 ips).

What label sizes can the DA320 handle?

The printer supports media widths from 19 mm up to 114 mm.

What ribbon sizes are supported?

The DA320 is a Direct Thermal printer and does not require ribbons.

What connectivity options are available?

Standard connectivity includes USB 2.0. Selected models may also include Ethernet, Serial and USB Host connectivity.

How much memory does the printer have?

The DA320 includes 128 MB Flash memory and 64 MB SDRAM.

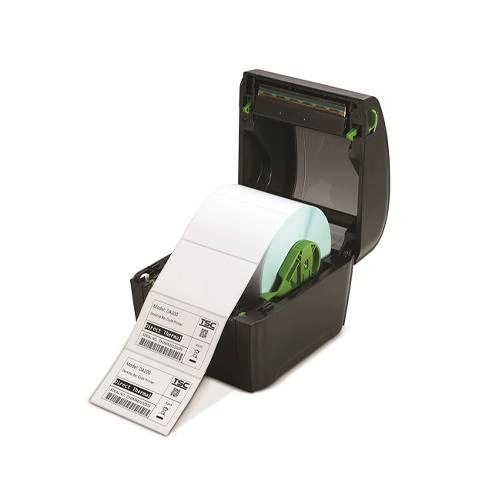

What media types can the printer use?

The printer supports die-cut labels, continuous media, blackmark labels, fan-fold media and tag stock.

Does the printer support cutters and peelers?

Yes. Optional cutter and peel-and-present modules are available for automated label handling.

What is the maximum roll size?

The DA320 supports media rolls up to 127 mm (5") in outside diameter.

Does the DA320 feature a colour display?

No. The printer uses a simple LED indicator and feed button for operation and status monitoring.

Is the DA320 compatible with Zebra printer languages?

Yes. The printer uses TSPL-EZD emulation and supports EPL,ZPL, ZPL II and DPL printer languages, helping simplify migration from other printer brands.
