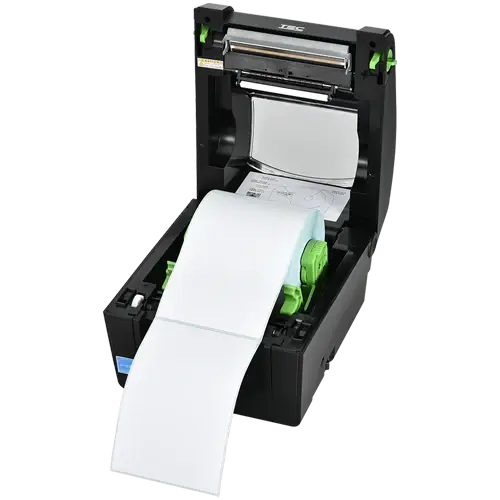

TSC DH240 203DPI - 4" Performance Desktop Printer

What printing technology does the TSC DH240 use?

The DH240 is a Direct Thermal printer, meaning it prints directly onto heat-sensitive labels without requiring ink, toner or ribbons.

What print resolutions are available?

The DH240 features a 203 DPI print resolution.

What is the maximum print width?

The maximum print width is 108 mm (4.25").

How fast can the printer print?

The DH240 prints at speeds of up to 203 mm/sec (8 ips).

What label sizes can the DH240 handle?

The printer supports media widths from 15 mm up to 120 mm and label lengths up to 25,400 mm, making it suitable for shipping labels, product labels, warehouse labels and asset tags.

What ribbon sizes are supported?

The DH240 is a Direct Thermal printer and does not require ribbons.

What connectivity options are available?

Standard connectivity includes USB 2.0, USB Host, RS-232 Serial and Ethernet. Optional Bluetooth and Wi-Fi connectivity are also available.

How much memory does the printer have?

The DH240 includes 128 MB Flash memory and 128 MB SDRAM.

What media types can the printer use?

The printer supports die-cut labels, continuous media, blackmark labels, fan-fold media and notch media.

Does the printer support cutters and peelers?

Yes. Optional peel-off and cutter modules are available for automated label handling.

What is the maximum roll size?

The DH240 supports media rolls up to 127 mm (5") in outside diameter.

Is the DH240 compatible with Zebra printer languages?

Yes. The printer uses TSPL-EZD emulation and supports EPL,ZPL, ZPL II and DPL printer languages, helping simplify migration from other printer brands.

‍
